The all-new PX|22 planers are an innovative new design for Laguna planers. The Laguna PX|22 planers are loaded with features to make woodworking safer and more enjoyable. The PX|22 is available in 2 configurations: 7.5 HP single phase or 10 HP three phase.
Motor – The PX|22 comes with either 5 HP Single Phase or 10 HP 3 Phase motor
Segmented Infeed Roller – Allows for multiple boards to be fed without having individual boards stall out due to small variations in thickness
Electronic Variable Speed – Allows users to speed up the material feed for quick thicknessing or to use slower rates for more cuts per This feature is something that is normally found on much more expensive models

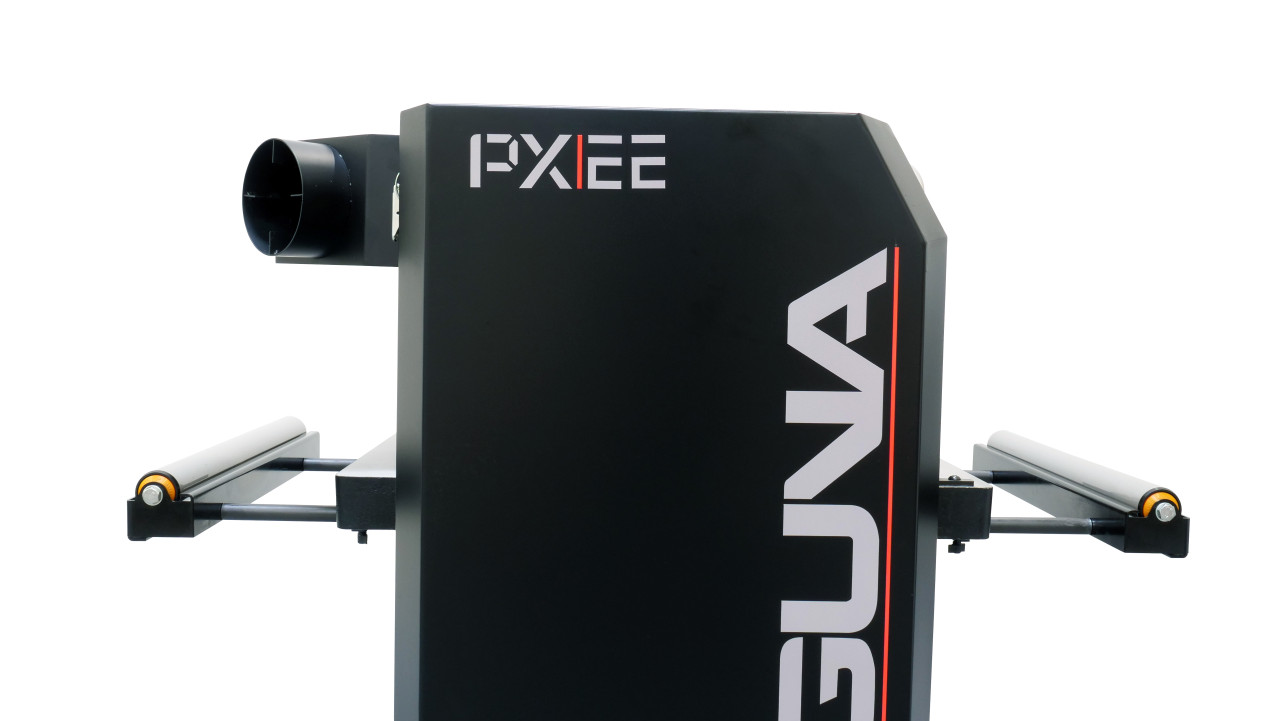

Infeed and Outfeed Rollers – The PX|22 features infeed and outfeed rollers to assist with material loading and feeding and provide a compact
Digital Readout – The DRO makes setting precise thickness easier
Ergonomic Control Panel – Machine controls and DRO have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility
Improved Dust Collection – The 5” diameter dust chute offers the option to point to right or left to optimize dust collection system layout
4-Post Bed Support – Provides precise and consistent performance with every cut
ShearTec IICutterhead – The ShearTec II is standard on the PX|22 Planer
Motor:220v 7.5HP 1 Phase 60hz/23 Amp.
Bed Size:22″ x 28″
Max. Depth Of Cut:1/4″
Max. Stock Thickness:8″
Min. Stock Thickness:1/2″
Min. Stock Length:9″
Max. Stock Width:22″
Feed Speed:10 – 30 FPM Variable Speed
Dust Port Diameter:5″ Left & Right
Cutterhead Insert #:150 x 4-Sided Carbide, 6 Row
Thickness Readout:Wixey DRO
Dimensions Set Up Approx.40″ x 46″
Dimensions Shipping:44″ x 38″ x 48-1/2″
Net/Ship Weight:867/955/638 Lbs.

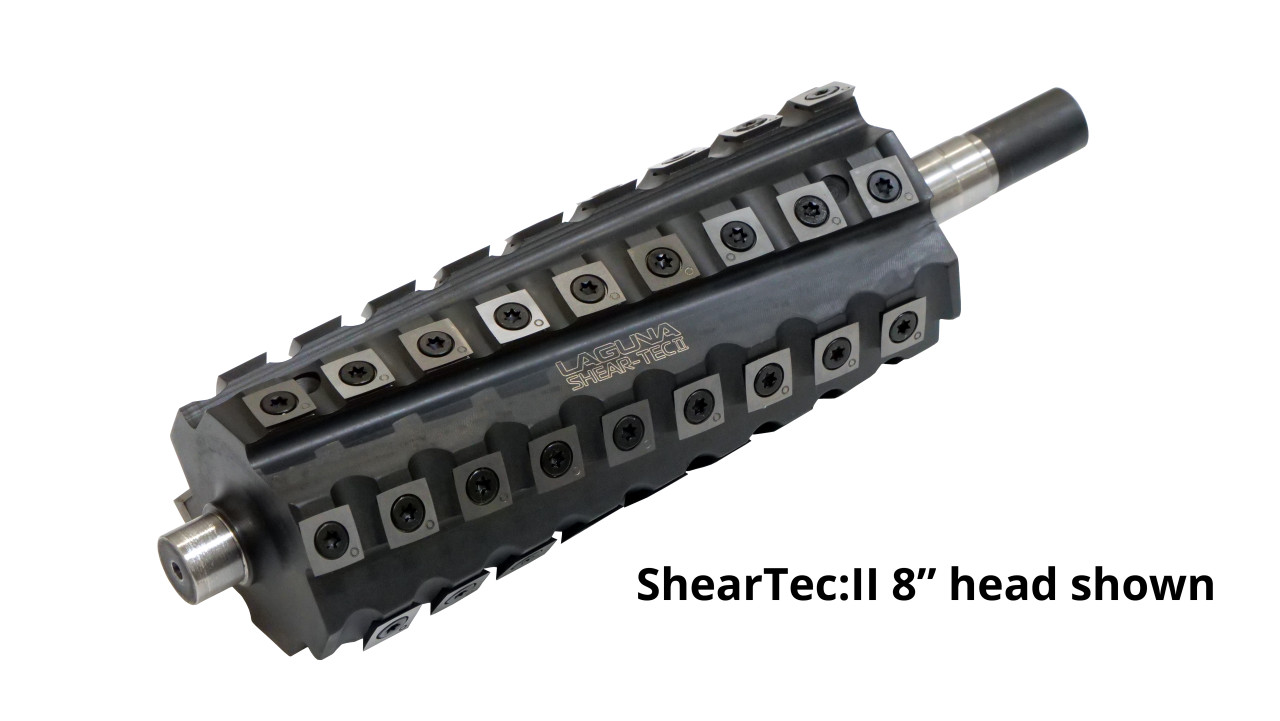

TheShearTec: IIfeatures 4-sided solid carbide inserts with a T-shoulder rather than a cone-shaped design, which helps prevent cracking of the inserts.
TheShearTec IIcuttherhead comes as standard equipment on PX|22 ShearTec II Jointer. TheShearTec IIis a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. TheShearTec IIknives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. TheShearTec IIcutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without need for a knife setting jig.
