Product Description

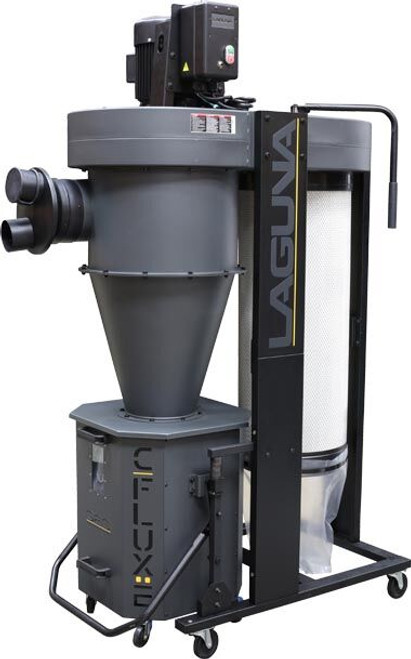

C|Flux: 2 Cyclone Dust Collector The c|flux series sets a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM. All shapes and dimensions has been reevaluated to optimize performance. The c|flux:2 comes standard with a 1 micron canister providing filtration of 99.97% of particles between the sizes of 0.2 to 2 micron & features 109 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard.Motor HP: 2 HP Phase: 1 Voltage: 220v Amps: 14 Amps Hertz: 60 Plug: No RPM: 3450 Switch type: Radio Frequency Remote switch – Black Box Hand held remote control: HF Shop Setting CFM*: 1166 Inlet CFM: 1740 Max Static Pressure (inches of water): 9.3? Impeller/Fan Size: 14.5? Impeller Material: Steel Impeller type: Radial Fin Balanced To:: ISO 1940 Inlet Diameters: 8? main to 4? x 2 ports Drum Capacity: 46 Gal. Octagon drum: Metal drum insert Drum collection bag (Dia. x L): Plastic bag (610 x 950mmL) Canister Filter type: 1 Micron Filtration efficiency: 0.2-2micron @ 99.97% MERV rating: 12 Canister diameter: 400mm (15.75?) Cansiter length: 900mm (19.69?) Filter Surface Area: 9.5m²/109ft² Canister cleaning: Manual Handle Crank/*Optional Auto Cleaning Kit available Canister filter lower dust collection: Plastic bag (400 x 600mmL) Base with perforated sheet across canister floor: N/A Wheels: 4? Flat Caster US/CSA Approved: Yes Decibel Reading: 88 d B(A) (@9.8ft) Machine weight: 134kgs/296Lbs Shipping weight: 165kgs/364Lbs Assembled Dimensions (L x W x H): 46? x 27? x 79? | 1178x690x2025mm
