Product Description
The definitive midi-lathe, Laguna’s REVO 12|16 encapsulates the prestige of Laguna in a small package. Featuring a Pulse Width Modulation system motor to maintain consistent torque at any speed, one step cam-action belt change with magnetic door housing, and a luxury banjo w/45º chamfered edge.

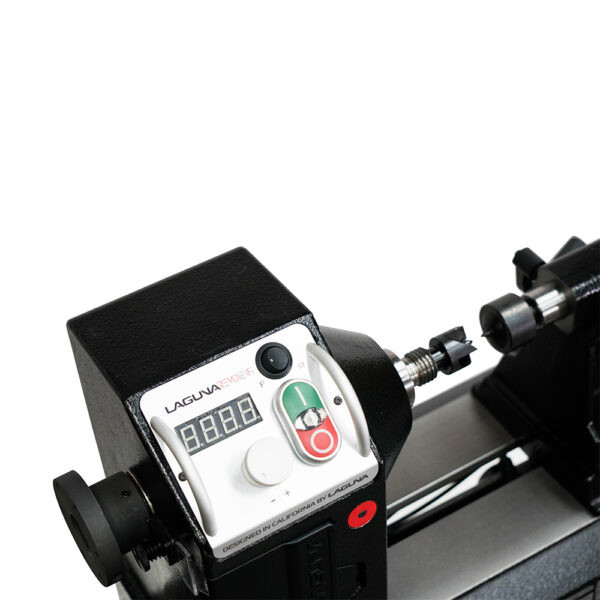

The above pictures shows the Revo 12|16 lathe with several options, such as the stand, light and wheel kit. These items are not included in the above price but can be purchased separately.
- Motor: 1 HP DC Permanent Magnet Motor
- Controller: Pulse Width Modulation (PWM)
- Electrical Requirements: 110V-1PH-60HZ
- Recommended Breaker Size: 110V – 15 AMP
- Speed Range High 650 – 3500 RPM
- Speed Range Mid 325 – 1750 RPM
- Speed Range Low 50 – 525 RPM
- Distance Between Centers 15.5”
- Swing Over Bed 12-1/2”
- Swing Over Banjo 9-1/2”
- Max. Outboard Swing 16”
- Spindle Bore 3/8”
- Spindle Taper MT2
- Spindle Thread 1”x 8 TPI (both ends)
- Front Bearing 6006LLU
- Rear Bearing 6005LLU
- Indexing 24 positions w/ Lock
- Drive belt Poly-V Belt 6 Grooves
- Tail stock quill travel 2-1/2”
- Tail stock taper MT2
- Bed Length 29.4”
- Tool Rest Length 6”
- Tool Rest Post Dia. 1”
- Faceplate Dia. 3”
- Certification CSA C/US 256540
- Floor to bed height 6.7” no pads
- Floor to Spindle Center 13” no pads
- Overall Size L29.4” W8.9” H17.4”
- Shipping Dimensions L35.8” W14.6” H20.5”
- Net Weight 118 LBS
- Shipping Weight 125 LBS
